07-18 GM Pickup Airbag Kit (Underneath Mounting)

This Kit will work for all 2007-2018 Chevy/GMC Pickup Trucks with leaf spring rear ends

Overview:

This is a complete rear air suspension kit *EXCLUDING BOLT-ON BRACKETS* The kit will come with WELD-ON brackets. Bolt on brackets will have to be purchased at you're own expense

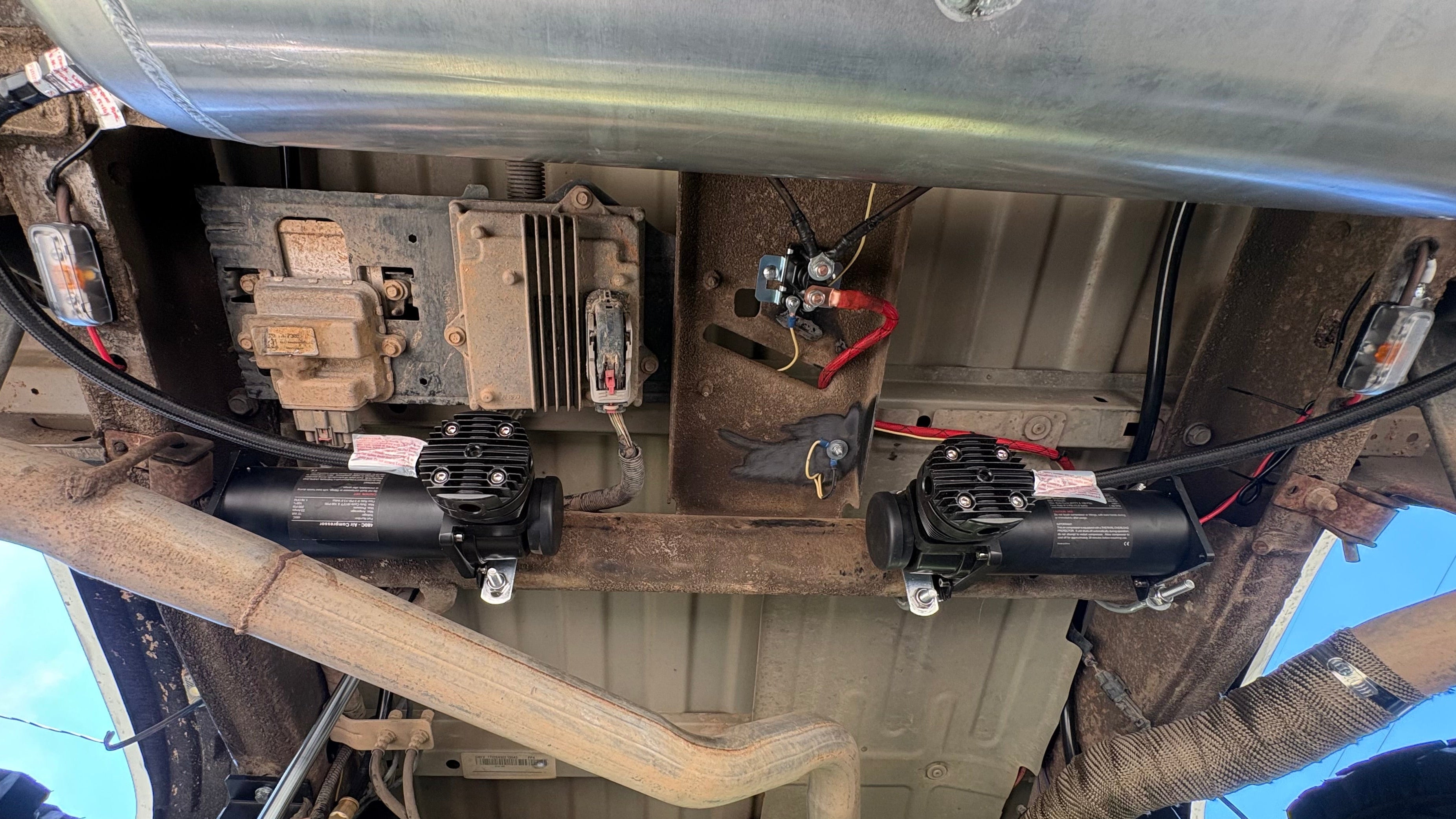

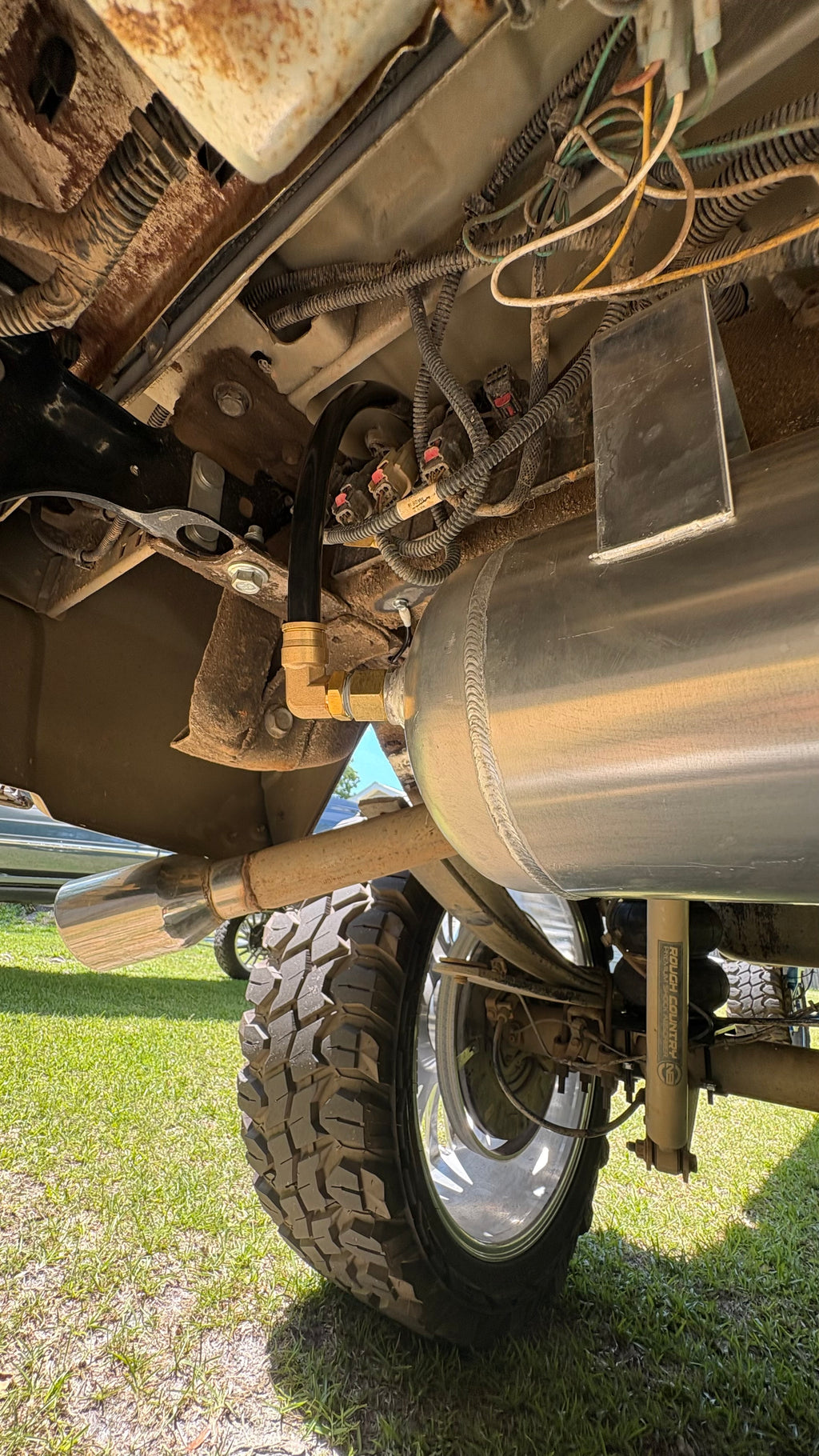

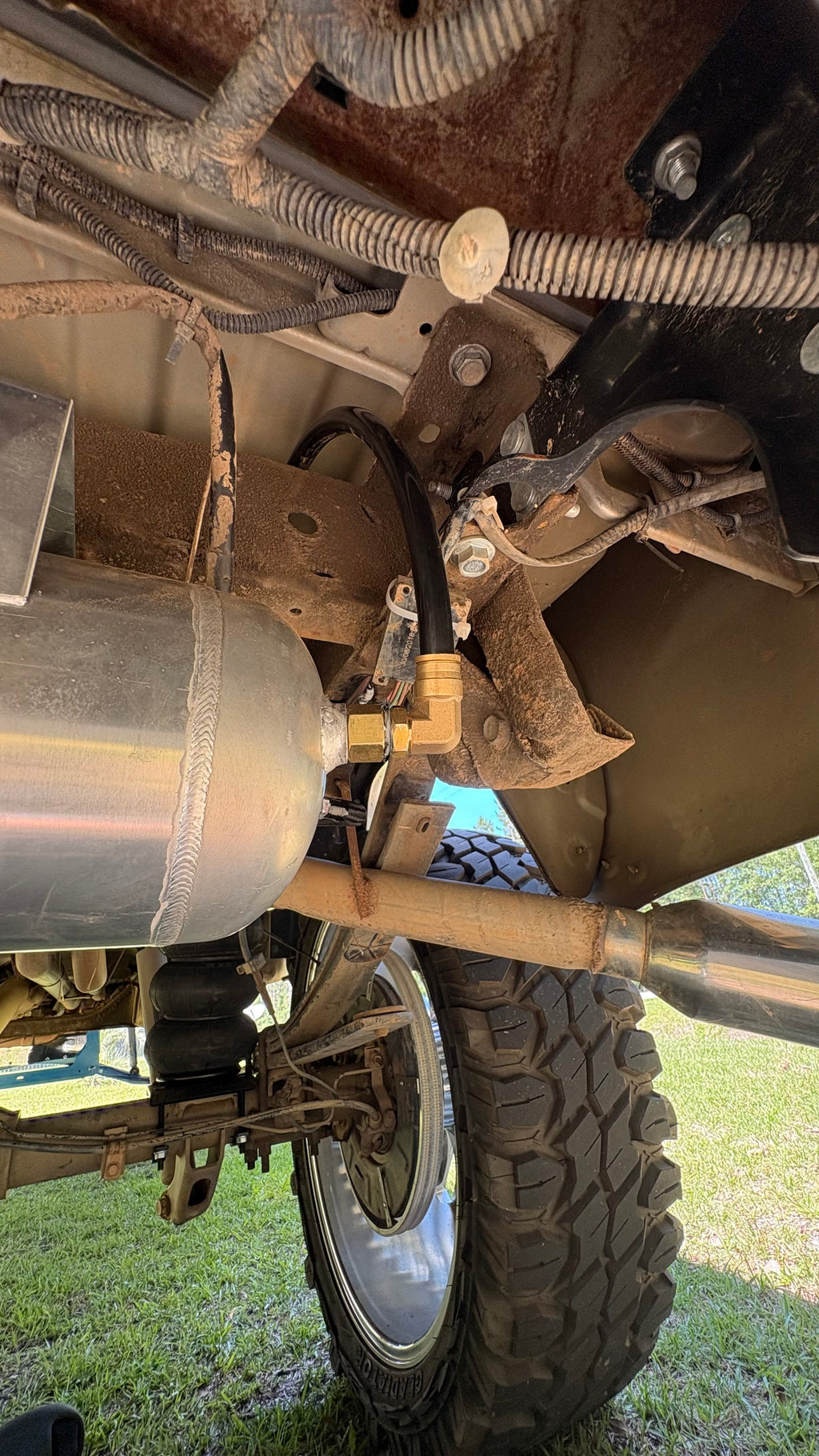

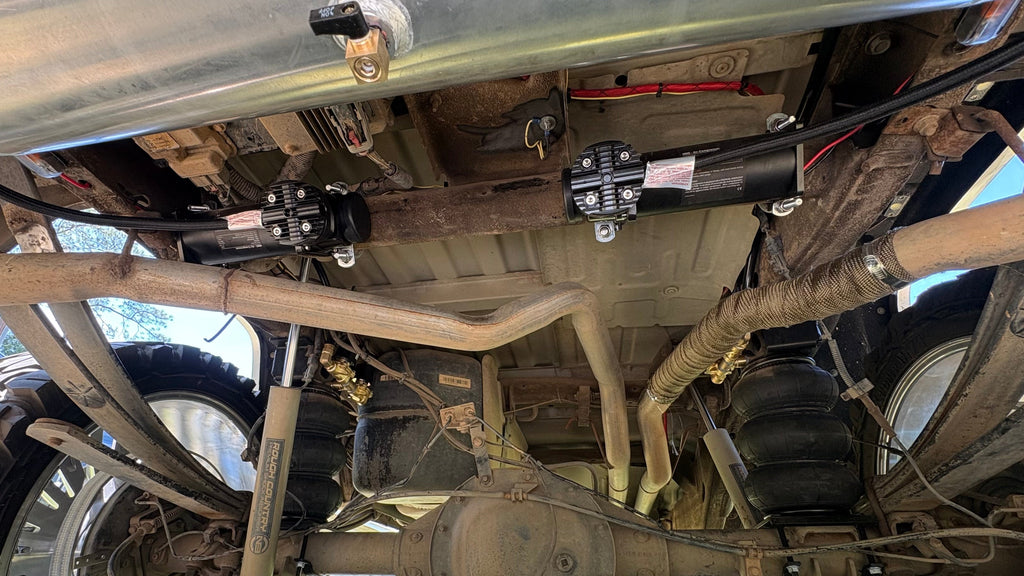

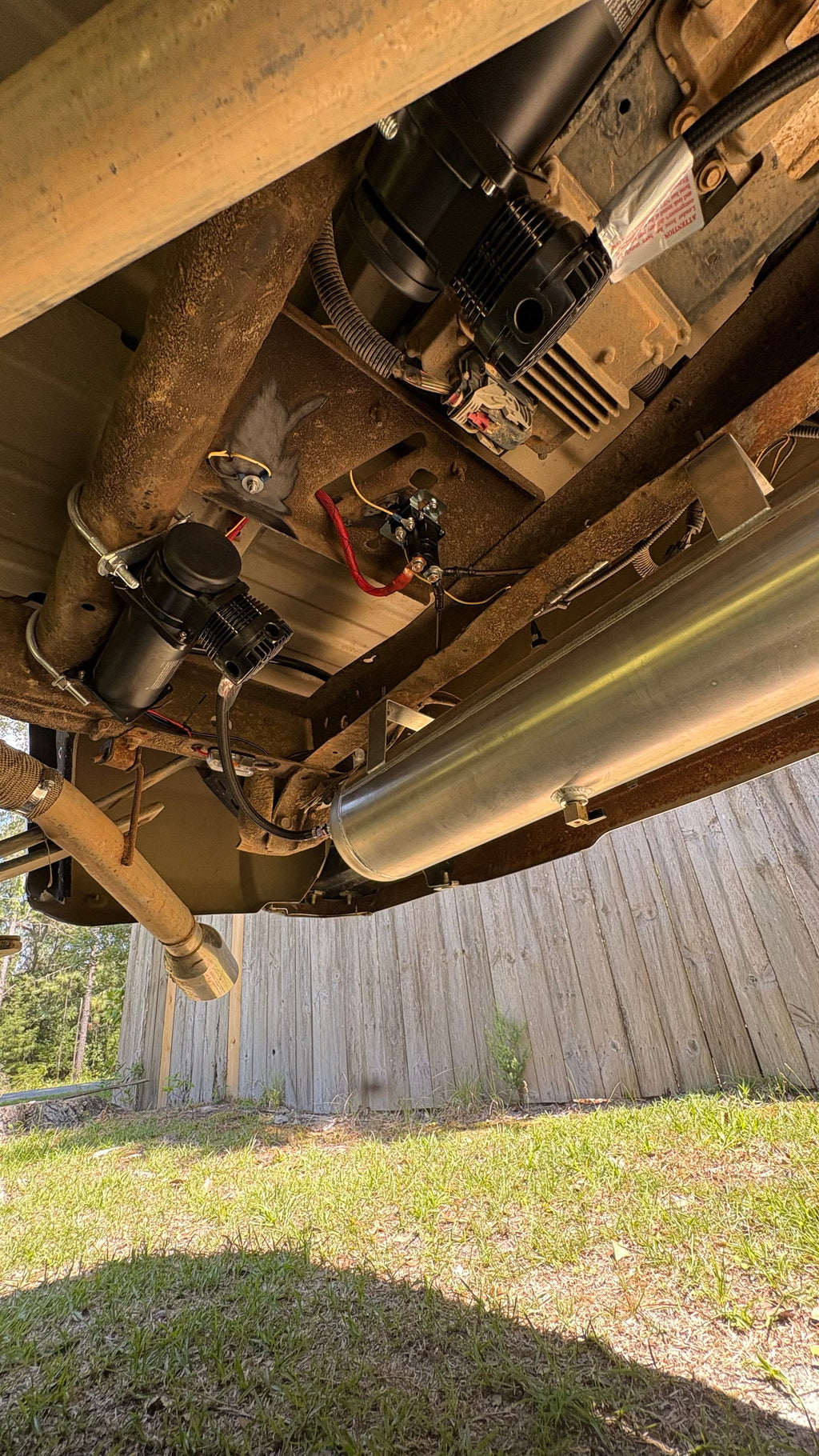

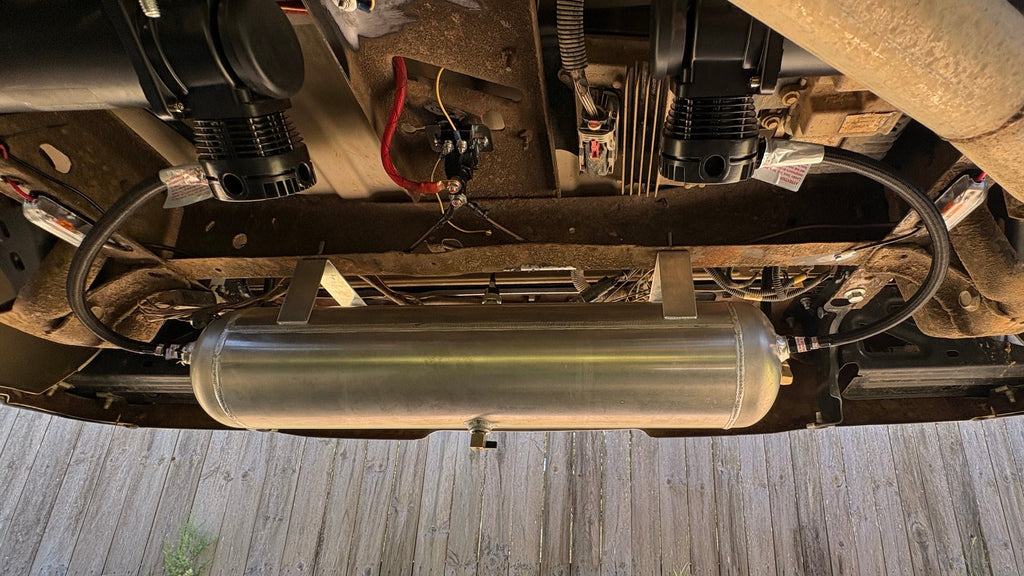

Kit also comes with all necessary components to securely mount tank and compressors Under You're Truck

Drilling Is Required!

Estimated install time: 8-10Hrs

Kit Includes:

• 5 Gallon Air Tank
• 200 Psi Pressure Switch

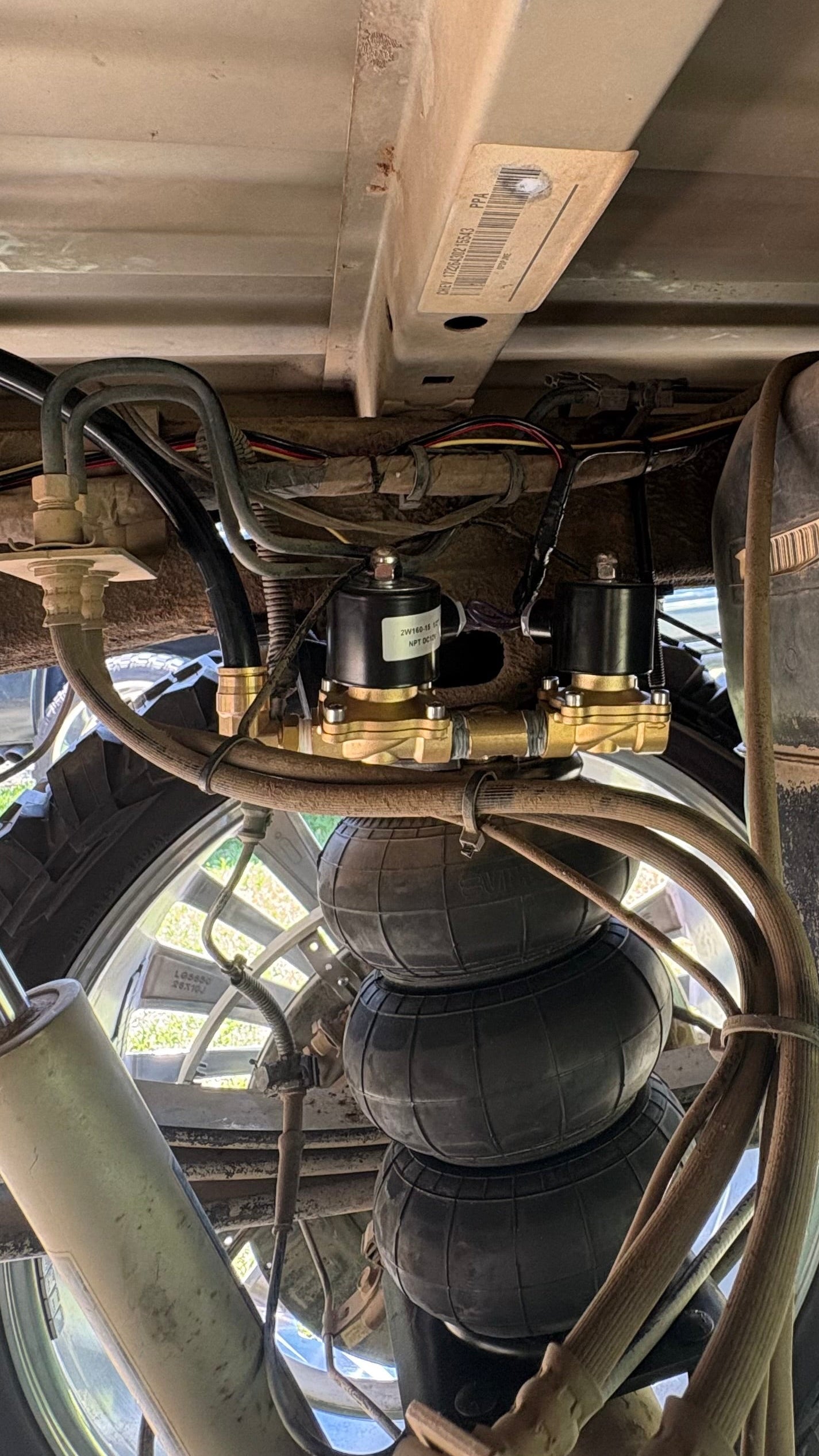

• 4- Solenoid Valves
• 2- 480cc 1/4" Compressors
• Correct 3/8x16 bags Bolts
• Airline 3/8” or 1/2”
• All Necessary Wiring
• 3 Different Switches to Choose From

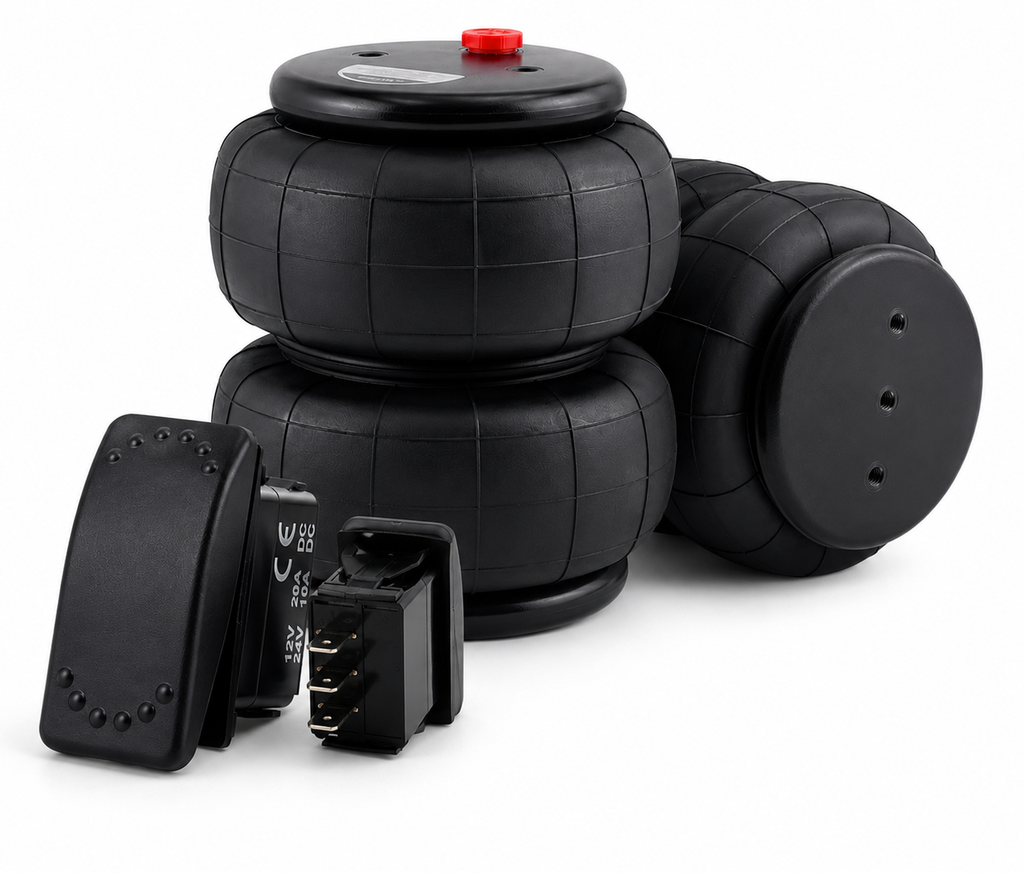

• Triple Bellow or Double Bellow Airbags
• Kit Will Also Include All Other Fittings Needed to Complete Install

REMINDERS:

• For your air compressors, always try and keep the included filters in a dry/clean area.
• Kit will come with bottom mounted drain to install. It is recommended to drain the tank of water a minimum of ONCE a week to prevent any future problems!
